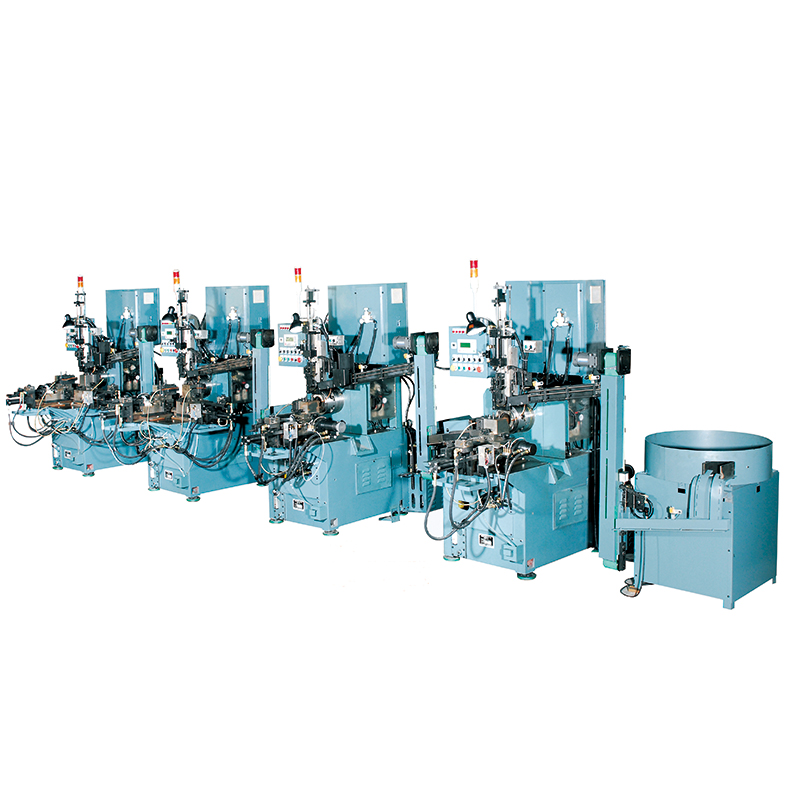

Bearing Ring Turning Production Line

Bearing ring turning production line is a special equipment for turning of mid-and mini-size bearings inner and outer rings.its main processing object is from 6206 to 6210 models bearing etc.the processing of bearing internal and external rings in various working procedure is fulfilled by the flow-line,which is composed of multi units of main machine with special function and various auxiliary machines,which through connecting line. This model can largely enhance the production efficiency and lower production costs.

Description

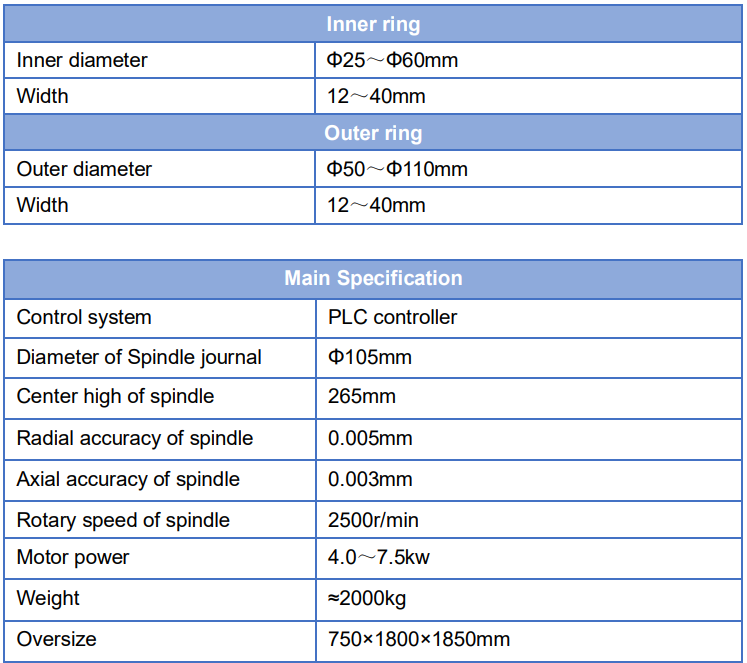

Main Specification

The bearing ring turning production line for mass production of ball bearing internal and external rings. the main machines mainly undertakes the processing of bore of bearings ring, outer diameter of rings, raceway of rings and seal race of rings and end-surface of rings and Chamfer of rings, the auxiliary machines consists of disc feeding machine,elevator and crusher,iron surf crusher etc. integrate electronic, mechanical,pneumatic and hydraulic processing period,processing according to different raw materials and customers requirements,flexible combination shapes,automatic or semi-automatic flow-line with different lengths.
