Inner Track Grinding Machine For Bearing Ring
The Inner track grinding machine for bearing rings is the most refined technology for inner track of bearing ring grinding and outer diameter grinding, grinding products includes the deep groove ball bearing ring, angular contact bearing, tapered roller bearing, cylindrical roller bearing, the model can achieve the higher tolerance accuracy and better surface finish of bearing ring. and has higher precision, higher stability, higher efficiency.
Description
Main Specification
The machine is adopted advanced control system, electronic, pneumatic, hydraulic, automatic online detection integration function, replaceable fixture technology and improvement device, with online measuring and detection workpiece processing status, automatic loading and unloading functions, realize the high precision grinding for inner track of bearing rings and raceway of deep groove ball bearings.
The main function unit were adopted the excellent motion design, such as the wheel grinding spindle is hydrodynamic spindles which has higher rigidity and precision, the spindle of workpiece head is setting the NSK bearings for improving the stability of spindle, and dresser unit is used the diamond roller structure or curve dressing(optional), so that achieve the highest-level demand from new energy industry, and x, y, z axials slides lubrication by the automatic grease oil, that ensure the motion unit have the longer working life. and much more function that we can set the processing gauge and balancing system to increase the grinding processing accuracy.
Processing Range

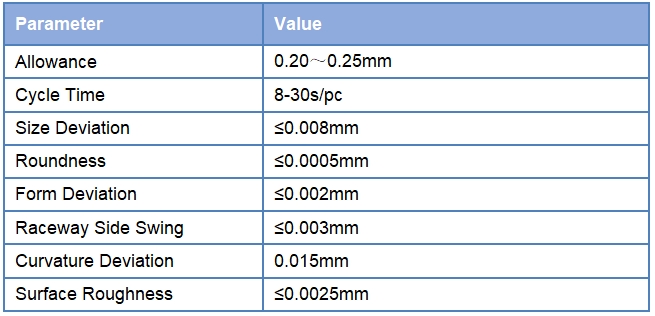

Tech Parameter
