Plunge Grinding Machine with Angular Wheel head

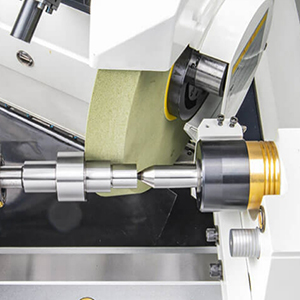

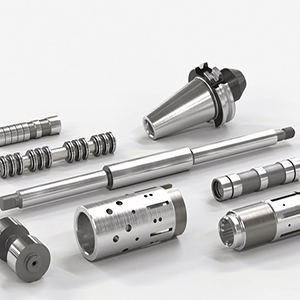

This machine model enables simultaneous composite grinding of the workpiece’s outer circle, shaft shoulder end face, and conical surface in a single clamping operation; it is specifically designed to meet the high verticality accuracy requirements for shaft-type components and is widely used in the mass production of bearing rings, motor shafts, gear shafts, new-energy vehicle shafts, and oil-pump shafts. The system is divided into three main categories: standard CNC models, the dual-grinding-head series, and the fully automatic loading/unloading series; it offers optional marble beds, active and passive pressure grinding-wheel spindles, active measurement instruments, and automatic grinding-wheel regrinding compensation, making it suitable for production ranging from small to medium batches to fully automated production lines.
描述
Main Specification
The M1620 cylindrical grinding machine is primarily used for grinding the end faces and external cylindrical surfaces of shaft-type components. It features a simple structure, easy operation, and excellent cost-performance ratio.
This machine tool is primarily used for grinding the end faces and outer circumferences of shaft-type components. It features a simple structure, easy operation, and excellent cost-performance ratio.
All guide rails are finished with a plastic coating to enhance their vibration resistance and sensitivity.
The grinding wheel spindle bearing utilizes NSK high-precision angular contact bearings; a hydrodynamic and hydrostatic spindle may also be configured according to the user’s requirements.
All lead screws are imported lead screws with C2-grade precision.
Configure radial and axial measuring instruments according to user requirements.
Adopt a direct-entry grinding-wheel frame structure with an oblique grinding head.
Technical Parameters
| Specification | Unit | Parameters(M1620×500) | Parameters(M1620×750) |
|---|---|---|---|
| Grinding Length | mm | 500 | 750 |
| Grinding Diameter | mm | Ф8-Ф200 | Ф8-Ф200 |
| Center Height | mm | 135 | 135 |
| Max.Workpiece Weight | kg | 50 | 50 |
| Worktable Speed | m/min | 0.1-4 | 0.1-4 |
| Grinding Wheel Linear Speed | m/s | 45 | 45 |
| Swivel Range of Worktable | 。 | -3-+7 | -3-+7 |
| Grinding Wheel Size | mm | Ф500×50×Ф203 | Ф500×50×Ф203 |
| Headstock Tip | Morse | No.4 | No.4 |
| Tailstock Tip | Morse | No.4 | No.4 |
| Servo Motor Power | kw | 2.4 | 2.4 |
| Main Motor Power | kw | 12 | 12 |
| Machine Dimensions | mm | 2700×1600×1500 | 3200×1600×1500 |
