High Precision CNC Cylindrical Grinders
CNC cylindrical grinding machines are designed for precision traverse & plunge grinding of outer diameters, tapers and radii on shafts, pins and ring workpieces. They are widely used for bearing rings, motor shafts, gear shafts, hydraulic parts and other high-precision mechanical components.
The machine is equipped with a rigid cast iron bed, optional granite bed for superior vibration absorption. Linear guideways ensure stable and smooth feed motion. The grinding spindle can be equipped with hydrostatic‑dynamic bearing structure, delivering high rotational accuracy and excellent precision retention during mass production.
Description
Main Specification
Rigid machine bed made of high-quality cast iron. Natural granite bed is optional for superior vibration damping and stable long-term grinding accuracy.
Grinding spindle with optional hydrostatic-dynamic bearing structure, featuring high rotary accuracy and low temperature rise, ideal for mass precision grinding of bearing rings and shafts.
Optional SYNTEC, FANUC or SIEMENS grinding CNC systems. Supports traverse grinding, plunge grinding, taper and radius grinding cycles. Conversational programming for easy operation.
High-precision linear guideways for X and Z axes, offering sensitive feeding, excellent positioning and repeat positioning accuracy.

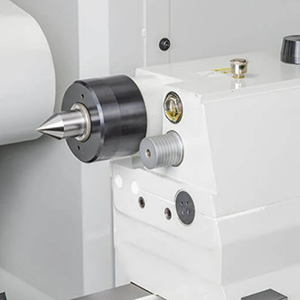

Standard hydraulic tailstock with adjustable clamping force. Optional steady rest, automatic wheel dressing & compensation, Marposs in-process gauge for closed-loop grinding.
Optional auto loading & unloading unit, compatible with automatic production lines for high-volume continuous processing.
Technical Parameters
